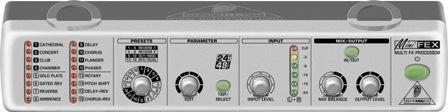

* Ultra-compact 9.5:" stereo multi-effects processor for studio and stage applications
* 16 awesome FX presets in 24-bit/48 kHz resolution including reverb, delay, chorus, flanger, phaser, rotary speaker, pitch shifter and multi-effects
* Intuitive FX Preset control with LED’s indicating the selected program
* Versatile Edit and Tap/Select functions to control a wide range of FX parameters
* Stereo Input Level control with accurate 6-digit LED Input meter for precise level indication
* Dedicated Mix Balance and Output Level controls for perfect effects level adjustment
* Additional footswitch connector for easy FX on/off control
* High-quality potentiometers and illuminated switches for long-term reliability
* Ultra low-noise audio operational amplifiers offer outstanding sound performance
* All Mini Series models can be stacked on top of each other to create an ultra-compact signal processor solution
* High-quality components and exceptionally rugged construction ensure long life


# Input:

* Type: 1/4" TS connectors unbalanced
* Impedance: Approx. 30 kOhm

# Output:

* Type: 1/4" TRS connectors, impedance balanced
* Impedance: Approx. 220 Ohm
* Max. output level: +10 dBu

# In/Out:

* Type: 1/4" TS footswitch connector

# Digital processing:

* Converters: 24-Bit Delta-Sigma, 128-times oversampling
* Sampling rate: 48 kHz

# System Specifications:

* Frequency response: 10 Hz to 22 kHz, -3 dB
* Dynamic range: 96 dB, 10 Hz to 22 kHz
* Distortion: 0.01% typ. @ 0 dBFS
* Crosstalk: -75 dB @ 1 kHz
* Signal-to-noise ratio: 10 Hz - 22 kHz < 86 dB @ 0 dBu, A-weighted

# Power Supply:

* Main connection: External power supply, 9V~ / 750 mA
* Mains voltage:
o USA/Canada: 120V~, 60 Hz
o U.K./Australia: 240V~, 50 Hz
o China: 220V~, 50 Hz
o Europe: 230V~, 50 Hz
o Japan: 100V~, 50 - 60 Hz
* Power consumption: Approx. 7.5W

# Dimensions and Weight:

* Dimensions (W x H x D): 9.6" x 1.9" x 4.7"
