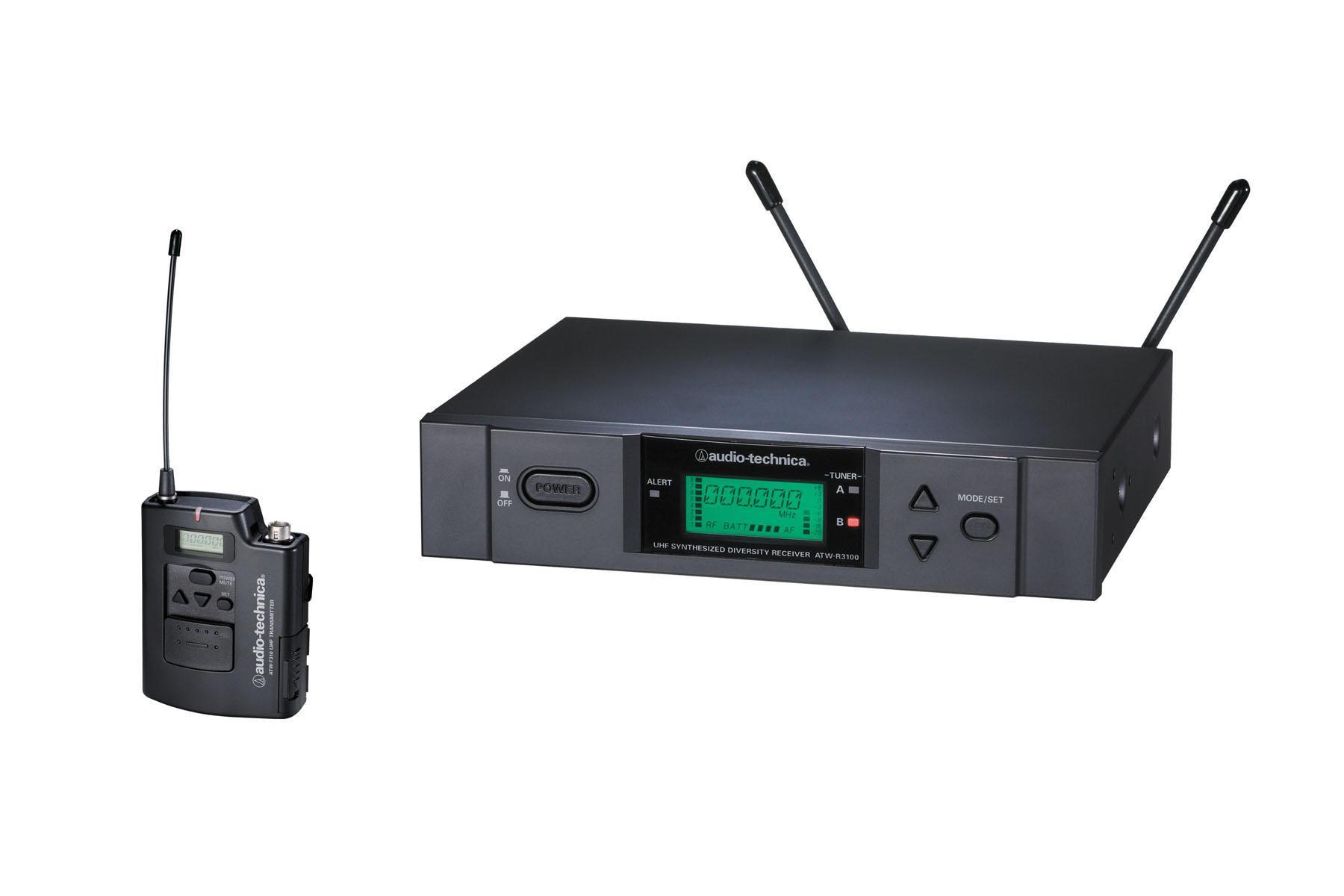

Audio-Technica ATW-3110 Wireless Body-Pack System - Includes: ATW-R310 Receiver and ATW-T310 UniPak Transmitter (No Mic) (Band D - 655.500 MHz - 680.375 MHz)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Audio-Technica ATW-3110 Wireless Body-Pack System - Includes: ATW-R310 Receiver and ATW-T310 UniPak Transmitter (No Mic) (Band D - 655.500 MHz - 680.375 MHz)

Be the first to review this product

Share/Bookmark

Availability: Out of stock.

$340.00

Quick Overview

AUDIO TECHNICA RECEIVER TRANSM. TV 44-49



The Audio Technica 3000 Series wireless systems provide reliable, professional UHF technology for the most demanding of applications. The ATW-3110 is a frequency agile, true-diversity body-pack wireless microphone system including the ATW-R310 receiver and ATW-T310 UniPak Transmitter. The absence of a microphone allows users the freedom to choose any of the Audio-Technica UniPak compatible microphones or cables as desired.

The ATW-R310 receiver features frequency adjustable UHF reception, allowing access of up to 200 user selectable channels. Diversity reception allows 2 build-in, independent receivers to relay on a single frequency for the strongest possible reception. The rear panel reveals both unbalanced 1/4" Phone and balanced XLR outputs. A comprehensive back-lit LCD display reveals channel and frequency settings, signal status and transmitter battery status. The receiver also features a ground lift switch, convenient in settings where bad power feeds result in ground hum and noise on the output stage.
The ATW-T310 body-pack transmitter features Audio-Technica's unique UniPak input connector. The input conveniently accepts both line and microphone level signal (adjustable) allowing instrument signal as well as microphone signals. An assortment of compatible microphones and instrument cables are available from Audio-Technica. The light weight transmitter operates on 2-AA Alkaline batteries for up to 6 hours (High) and 8 hours (Low).

• Frequency Agile
The system operates on UHF frequencies allowing greater channel selectability and range. The transmitter and receiver feature 200 user selectable channels.

• Diversity Reception
The ATW-R310 receiver features dual internal receivers. The receivers relay between each-other, vying for the strongest reception while minimizing noise and signal drop-out.

• UniPak Transmitter
Audio-Technica's UniPak transmitter is a body-pack with an input connection designed for low and high impedance signal. This makes the transmitter versatile enough to handle microphone and line level signals.

condition New
Specifications
System
Type of System
UHF Frequency Agile Body-Pack
RF Carrier Frequency Range
Band D: 655.500 MHz to 680.375 MHz
Approx. Working Range
300 feet
Overall Frequency Response
70 Hz to 15 kHz
Signal-to-Noise Ratio
110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz
# Of Channels
200 Channels
# Of Simultaneous Systems
6

ATW-R310 Receiver
Type of Receiver
Dual independent receivers, automatic-switching diversity
Type of Outputs
Unbalanced: 1/4" TS ("mono") phone jack
Balanced: XLRM-type
Headphone Monitoring
No
Power Requirements
120V AC 60 Hz; 12-18V DC, 500 mA, center positive, with external supply
Battery Type/Approx. Life
AC Powered Only
Display
Back-Lit LCD Display & Battery / Signal Status LED
Mounting Options
Table Surface / Rack Mountable rack ears included
Antenna Type
BNC Flexible UHF
Dimensions
8.27 x 1.93 x 6.93" (210.0 x 49.0 x 176.0mm) (WxHxD)
Weight
2.4 lbs (1.1 kg)

ATW-T310 UniPak Transmitter
Type of Transmitter
Frequency Agile Body-Pack
Type of Input Connector
High Impedance / Low Impedance / Bias UniPak Connection
Type of Microphone
microphone not included with this system
Polar Pattern
not applicable
Interchangeable Mic Heads
Various AKG microphones and cables featuring UniPak connection
Battery Type/Approx. Life
(2) 1.5v AA Alkaline not included
Mute Switch
Power / Mute switch dual function
Level Control
Input Level Control: -6dB / 0dB / +6dB / +12dB
Antenna Type
BNC Flexible UHF
Display
Back-Lit LCD Display & Battery / Signal Status LED
Dimensions
2.60 x 3.43 x 0.94" (66.0 x 87.0 x 24.0mm)(WxHxD)
Weight
2.8 oz (80 grams)without batteries
Manufacturer Audio Technica
