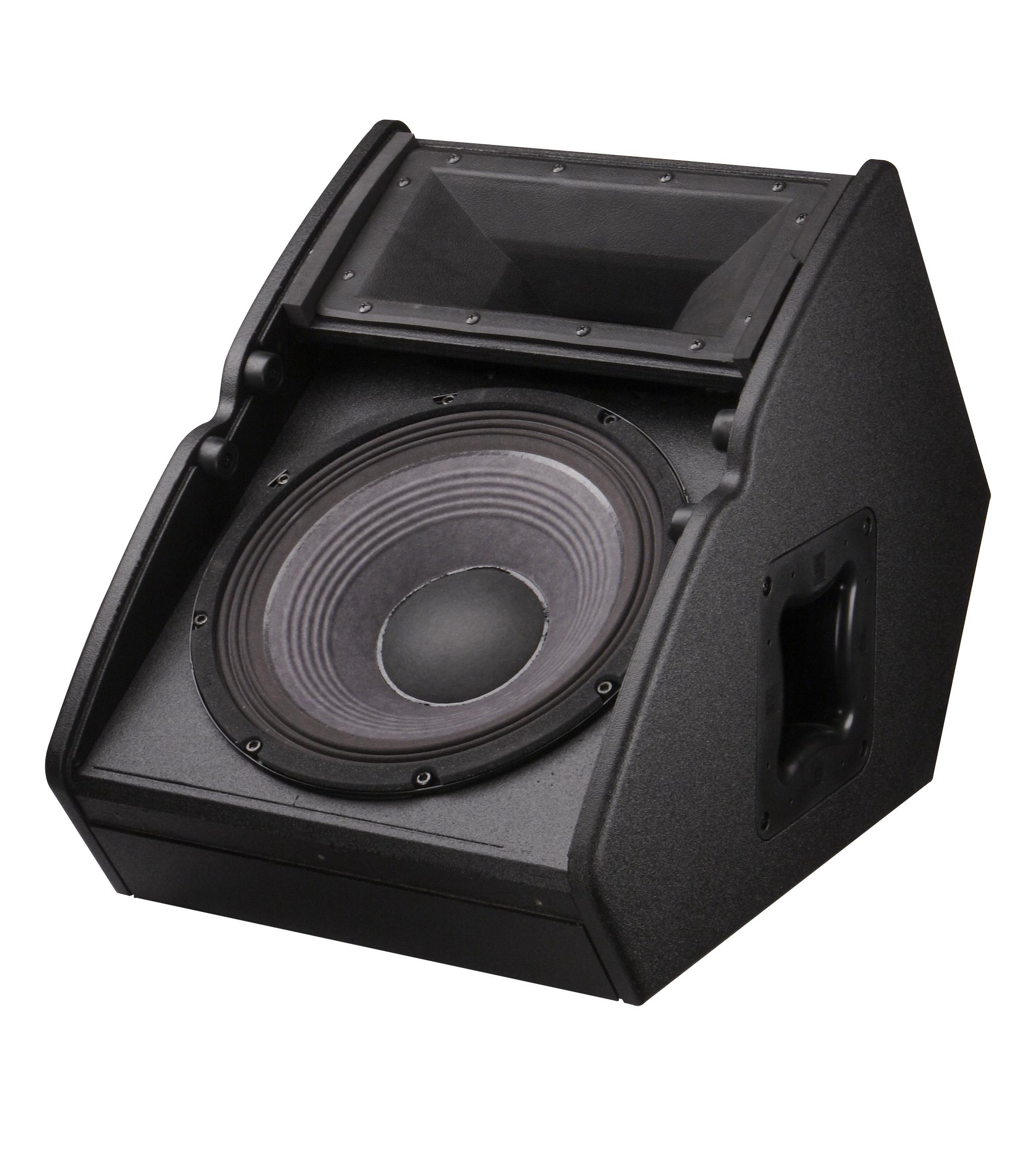

Electro Voice TX1122FM 12-inch Two-way Vertical Floor Monitor

Be the first to review this product

Share/Bookmark

Availability: Out of stock.

$535.00

Quick Overview

With an undeniable combination of functional good looks, compact design and engineering breakthroughs, Tour X FM will redefine the world of stage monitors for years to come.


* 55 degree Compact Vertical Floor Monitor
* Signal Synchronized Transducers
* DH3 1.25 inch Diaphragm
* 1 inch (25mm) Exit Pure Titanium Compression Driver
* SMX2121 12 inch (305mm) LF Transducer with Fully Symmetric Drive
* Integrated Crossover with Steep 24 dB/Octave Slopes and HF Protection
* Ergonomic handles
* Angled input panels
condition New
Specifications
Frequency Response (-3dB) 70 - 20000 Hz
Frequency Response (-10dB) 55 - 20000 Hz
Recommended High-Pass Frequency 60 Hz
Sensitivity 1W/1m 99 dB
Max. SPL / 1m (calc) 132 dB
Coverage (nominal -6dB) H° 90 °
Coverage (nominal -6dB) V° 50 °
Rotatable Horn No
System Power Handling (continuous/program/peak) 500/1000/2000 Watts
LF Transducer SMX2121
HF Transducer DH3
Crossover Frequency 1600 Hz
Nominal Impedance (Passive) 8 Ohms
Minimum Impedance 6.4 Ohms
Enclosure Material Plywood and MDF with EVCOAT
Color Black
Flying No
Input Connections Parallel Neutrik® NL4
Internal Crossover Yes
Speaker Type Fullrange
Dimensions (HxWxD) 440 x 364 x 573 mm
(17.32" x 14.33" x 22.56")
Manufacturer Electro Voice
